The 358 Extra High Security Mesh Fence is an anti-climbing and cutting device that can be penetratively assaulted with hand tools due to its strong welding mesh panel. This fence has a 3″ x 0.5″ opening for viewing, approximately 76 mm by 12 mm large enough only 4mm thick; it’s designed this way so even if someone were on top of you trying attack them from above or below (which would make sense because most humans want nothing more than what’s right under their nose), they wouldn’t succeed!
Table 01: 358 Mesh Fencing Details | |
Name | High security fence,358 mesh fencing,Anti climb fence, Prison mesh fence. |
Mesh | 76.2×12.7mm/ 75×12.5mm |
Wire Diameter | 8 gauge (Ø4mm) |
Fence Height | 1.8m/2.1m/2.4m/2.7m/3.0m/3.6m |
Wire Tensile strength | 500-550 MPa (Complies with AS 2423 (500/ 625MPa) |
Zinc coating mass | 255g/m2 minimum (Complies with AS 4534 Class W10Z5A) |
Steel work | Hot dip galvanised after fabrication to AS 4680-2006 Hot-dip galvanized |
Post | 60x60mm/80x80mm/100x100mm/IPE post |
Surface treatment | Hot dipped galvanizing/Hot dipped galvanizing+Powder coated |
Welded mesh security fencing can be enhanced with a range of additional fittings to the top of the fence including:Razor wire,Barbed wire,Steel spikes. | |
Here you can do more secure on your fence, that add the double Y arm with the razor wire on top.

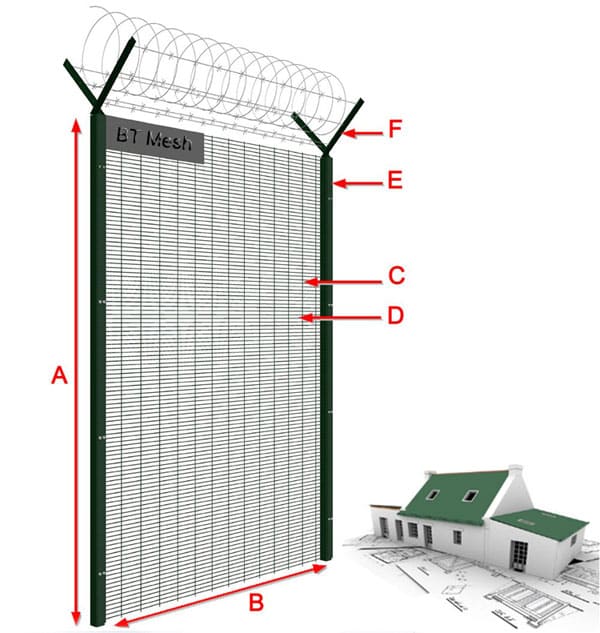

A—Anti-climb fence height can be 0.1m-6m or as your request, you can bury the steel post underground, then use the concrete pour into the hole to enhance the 358 mesh fencing more stronger.
Or you can make steel base plate on the post to use the expansion screws install on the concrete floor.
B—The mesh width can be 0.1m to 3m, we normal make the panel center to center install on the post, all can be customized as your request.
C—Low carbon steel wire diameter is 4mm to make more stronger.
D—Mesh opening is 76.2mmx12.7mm to anti-climb, anti-cut and anti-theft.
E—Anti-climb fence metal post, you can bury the steel post underground, then use the concrete pour into the hole to enhance the 358 mesh fencing more stronger.
F—Double Y extension to hold the razor wire on top, that will make the anti climb fence more security.
1.Anti-climb: more smaller mesh apertures, no toe or finger can holds.
2.Anti-cut: It is difficult to cut through these materials with a bolt cutter or wirecutter because of their robust construction.
3.Long-lasting usage time: galvanized and powder coating ensure a long service life.
4.Give more Safety: Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
1.That will be 2D 358 mesh fencing, we will add extra horizontal wires on the mesh panel to make it more stronger.
2.It also has the 3D security Fencing to enhance the whole mesh fence panels.
If you want to know more details, please contact us.
We make good package to protect the 358 mesh fence panels and metal posts, each post with the plastic bag to avoid scratch for the surface.
