Bent Top Palisade Security Fencing

In areas where security is essential, Palisade fencing ensures maximum protection. The cold rolled pale section are permanently secured to the horizontal members to form a high security, solid steel barrier up to 4.2 metres in height. W Pale Palisade is used mostly to secure Substations, Rail Corridors and Correctional Centres.

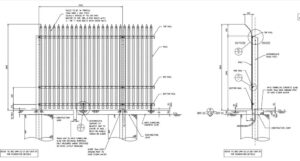

Palisade fencing is supplied piece small and erected on site to easily accommodate different site requirements. The posts are generally a 100mm x 55mm RSJ or can be increased to 127mm x 76mm RSJ for higher fences for sites that require heightened security. The posts are set at 2.75m centres and either concreted into the ground or can have baseplates attached for them to be four times bolted to an existing solid base such as a concrete floor or to the side of a brick wall.

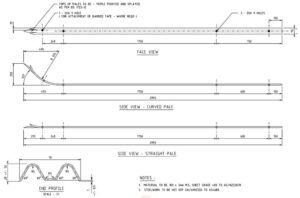

The pales used are either a D section or a W section and can have rounded and notched top or a triple pointed top for extra security. The thickness of the pales can be adjusted to suit your requirements as well. The D section pale is normally 3mm thick and the W section normally 2mm thick but can be increased if stronger pales are required.



The rails are generally 50mm x 50mm RSA but can be decreased or increased dependant on the site requirements.



The whole system is securely bolted together using security nuts and bolts. The bolt is designed to fit perfectly with the desired pale section and the nut snaps off to leave a cone attached to the bolt so intruders cannot undo.



The finish of the posts, rails and pales can be supplied and installed in a standard galvanised finish to prevent rust and degradation or can also have a polyester powder coated finish in a colour of your choice.

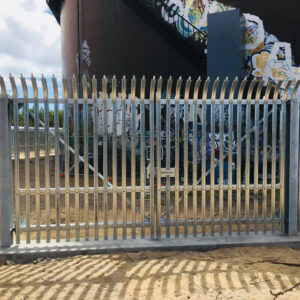

Palisade Gates are also available in either small single leaf for a personnel entrance or double leaf gates for vehicle entrances. All gate specifications are to suit the size of the desired gate.

Applications

Palisade Fencing can be supplied and erected all over Australia but out main area of service is Brisbane, Gold Coast, Sunshine Coast and Redlands Queensland. Palisade fencing is such a versatile fence in can be used in a number of locations. It is perfectly suited to the following uses:



Security Fencing

Industrial Fencing

Commercial Fencing

School Fencing
